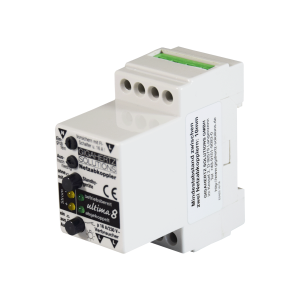

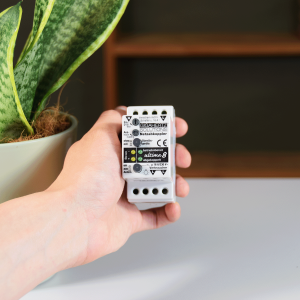

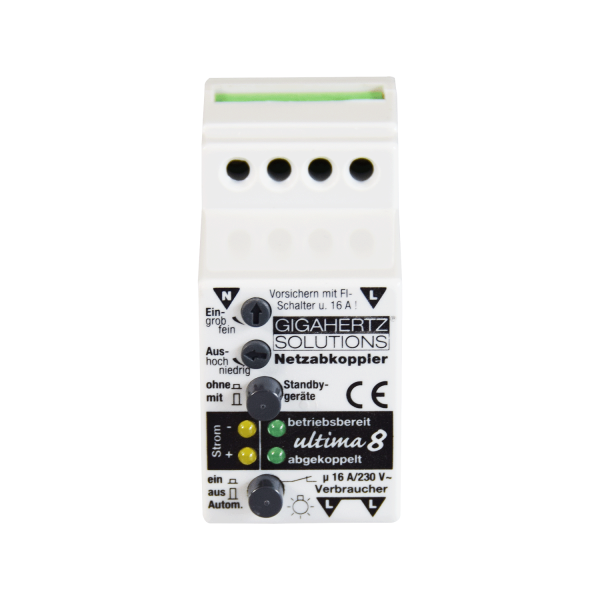

Demand Switch Ultima 8 | U8

also disconnects standby devices

Disconnects voltage directly in the fuse box as long as no electricity is needed.

Available immediately
Delivery time: 1 - 3 Workdays (DE - int. shipments may differ)

More than 5,000 satisfied customers

244,90 €

incl. 19% VAT , plus

Gigahertz Solutions GmbH

SKU: 220-061

GTIN: 4039009220061

Category: Devices

Product information "Demand Switch Ultima8 | U8"

A patented circuit allows to also reliably disconnect the so-called "primary-side power supplies".

The apparent output which can be disconnected is up to 100 watt.
Ideal, for instance, for the control of roller shutters which cannot be disconnected with the conventional demand switches.
Surveillance voltage only 230 Millivolt - the lowest value on the market.
The different setting opitons render a lot possible, but also require a little more installation and mind effort.

Item weight:	0,20 kg
Frequency range:
Scope of delivery:	Demand switch System control lamp Basic load element Manual
Measurement range:	Nominal voltage / load: 16 A, 230 VAC +/- 10%, 3500 Watt light bulb load Mechanical life of relay: approx. 15,000,000 operations 1-pole disconnection: for optimum personal protection, minimum residual ripple and active RF-LF compensation.
Precision:	< 1 mV / < 1 mV / < 1 mV (nominal/typical/maximum) Monitoring voltage: Minimum low-current DC voltage (230 Millivolts)
Warranty:	Safety: Overvoltage-proof according to IEC 1000-4-4 (Burst) and IEC 1000-4-5 (Surge) Clearance and creepage distances according to EN 600065 / VDE0860 are met Housing: DIN rail mounting according to DIN-EN 50 022 for the house fuse box, 35 mm = 2 PE Warranty: 2 years
